30m/Min Scrap Wire Stripping Machine 30-120mm Stripping Range
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | ISO, CE, CO |
| Model Number: | QJ-120-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 1300-1600 per set |
| Packaging Details: | Ply wooden case |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Name: | Scrap Wire Stripping Machine | Function: | Recycle Copper |
|---|---|---|---|
| Motor: | 3kw | Stripping Range: | 2-120mm |
| Dimension: | 820*560*1190mm | Voltage: | 380V/50HZ, 3 Phase |
| Strpping Speed: | 30m/min | Weight: | 200kg |
| High Light: | 30m/Min Scrap Wire Stripping Machine,120mm Scrap Wire Stripping Machine,30m/Min scrap wire stripper |
||
Product Description
Stripping Range 30-120mm 30m/Min Scrap Wire Stripping Machine

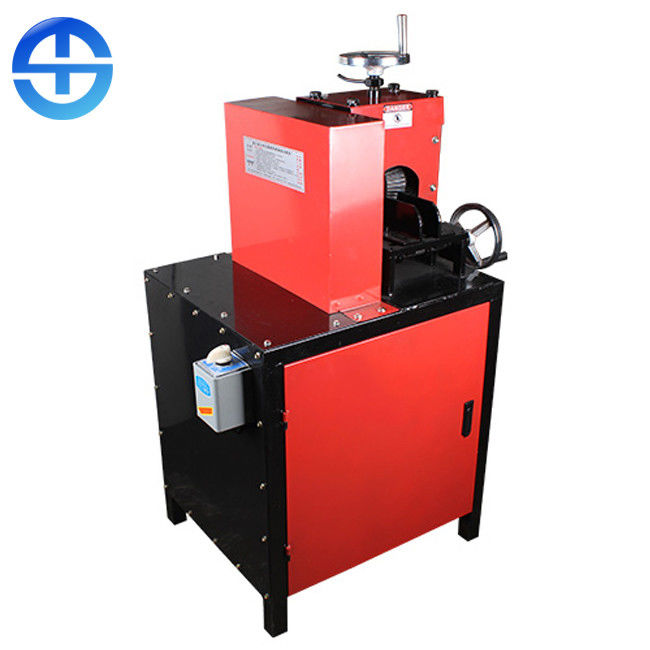

Introduction of scrap wire stripping machine
Scrap wire stripping machine has the most funtions among our stripper machines. This kind stripper is a multi-purpose wire stripper developed by our company for small wires and high-voltage cables, submarine cables and armored cables. It is simple to operate and easy to adjust. It is driven by a 3kW six level three-phase motor.
Feature of scrap wire stripping machine
1) This machine suitable for a variety of wire. Wire stripping range 2-120mm.This machine is practicable and easy to handle.
2) Frame dual blades principal, can process different diameter cable, easy to operate and durable.
3) This model are easy to operate, convenient to carry, energy saving, for single copper wire(hard wires) can be rolled or blades stripping, other cables(soft wires) can be easily stripped.
Technical datas of scrap wire stripping machine
| Model | QJ-120-2 |
| Machine size | 820*560*1190mm |
| Capacity | 30m/min |
| Motor Power | 3kw |
| Weight | 200kg |
| Motor | 380V/220V |
| Wire diameter stripped | 2-120mm |
| Blades | 10+2 pcs |
| Hole | 7+1 |

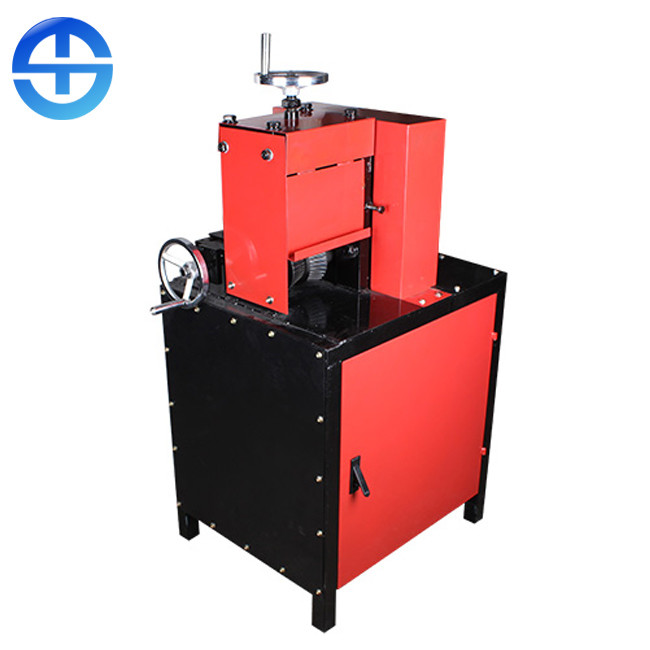

The machine can be divided into left and right sides to work simultaneously
The left small line in hole consists of 6 incoming holes of different sizes (stripping range: 2-30mm)
The right large line in hole is composed of a single adjustable inlet hole (stripping range: 30-120mmm)
Number according to the picture
1: 1 stripping range: 18-26mm
2: 2 stripping range: 11-20mm
3: 3 stripping range: 7-10mm
4: 4 stripping range: 5-8mm
5: 5 stripping range: 3-5mm
6: 6 stripping range: 2-3mm
7: No.7 stripping range: 30-120mm
8: Adjusting handle for the size of No.7 wire entry hole (the diameter of No.7 wire entry hole can be adjusted to 30-120mm).
